HD Spindle Kit - Passenger Side [Crossfire 150R] (WAS $110!)

HD Spindle Kit - Passenger Side [Crossfire 150R] (WAS $110!)

  • $90.00
    Unit price per


READ THIS - This product is part of our 2017 CNC update. Instead of discontinuing our USA-made product line, we're doubling down and investing in new equipment to make it easier to keep these items on the shelf long term. Expect short-term availability shortages. Read about it here.







Made with high-strength American steel, not cast material like the original!

Built tough for how you ride!
This spindle is made to withstand the toughest trails and riding styles, it will even hold up to the kids! No more bending or breaking. Backed with our Lifetime Replacement Guarantee.

Our axle shaft is 5/8" GRADE 8, proven over many years in our HD spindles for other models.

Bolt on installation
No fabrication is required for installation. This is a bolt-on kit.

Improved bearings
The included fully sealed maintenance-free wheel bearings will need to be installed in your hubs along with the spacer that comes with this kit (details below).

Lifetime No-Breakage Guarantee



What's included

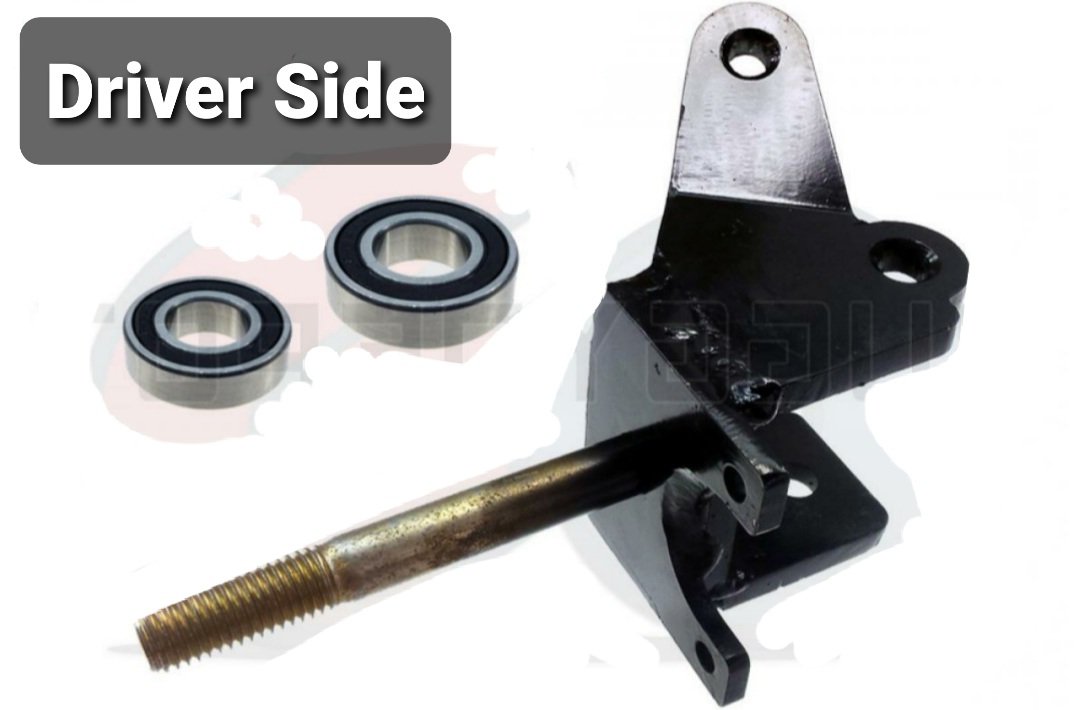

1. Spindle
2. DOM Spacer
3. Large Bearing
4. Insert Sleeve
5. Your original hub (Not Included)
6. Small Bearing
7. Axle Nut





INSTALLATION


Before you begin, remove the original bearings and seals from your wheel hub.



Step 1. Slide the DOM Spacer onto the axle shaft.

Step 2. Slide the Large bearing and Insert Sleeve onto the axle shaft.

Step 3. Insert the axle shaft assembly into the rear of your hub, sliding over the large bearing on the shaft.

Step 4. Now slide the small bearing onto the shaft, and tighten the entire assembly down using the Axle Nut. The Insert Spacer and bearings will press themselves into proper location as you tighten the axle nut.

Clarification: The Insert Sleeve is meant to fit inside of the large bearing as shown. No press is required, follow the steps above.
