TrailMaster Axle (for internal reverse engine)
TrailMaster Axle (for internal reverse engine)
TrailMaster Axle (for internal reverse engine)
TrailMaster Axle (for internal reverse engine)
TrailMaster Axle (for internal reverse engine)

TrailMaster Axle (for internal reverse engine)

Shipping calculated at checkout.

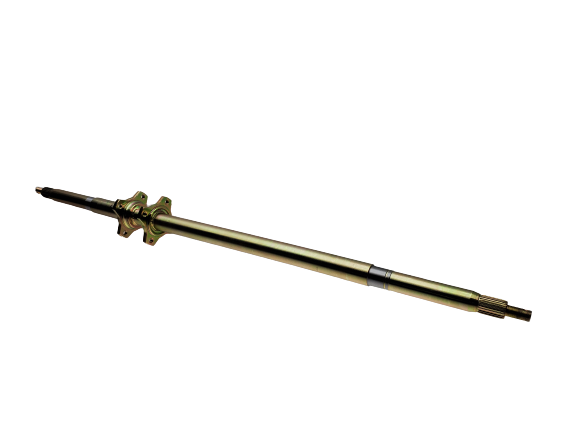

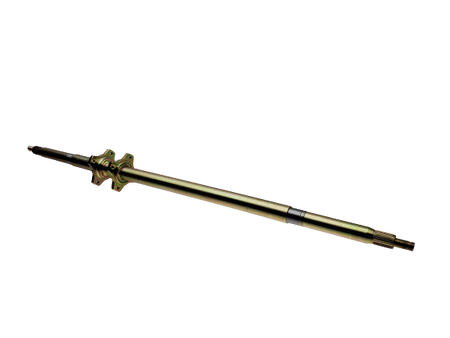

TrailMaster Go-Kart Axle for the internal reverse engine.

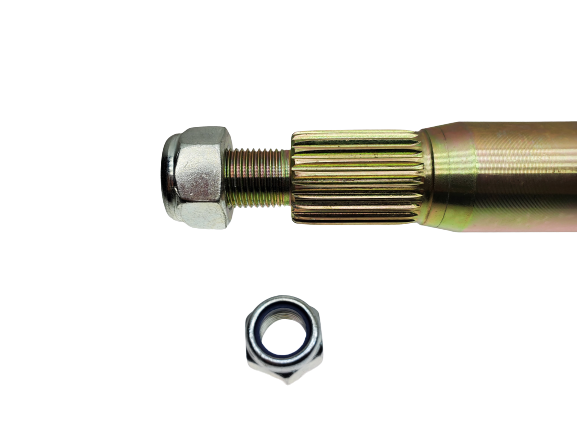

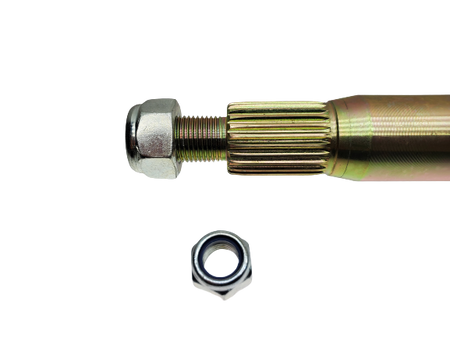

  • Comes with two M16 1.5 Nylok nuts
  • 12 month warranty against breakage

Specifications:

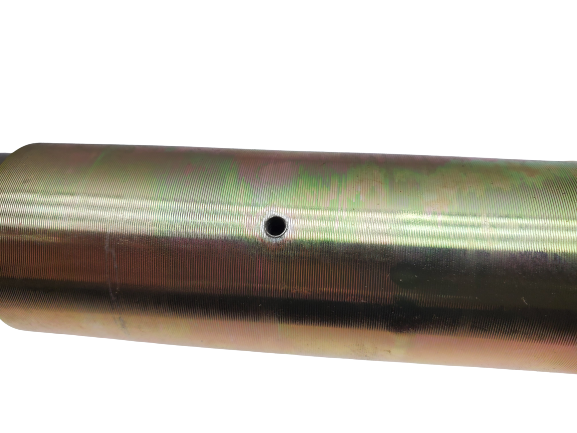

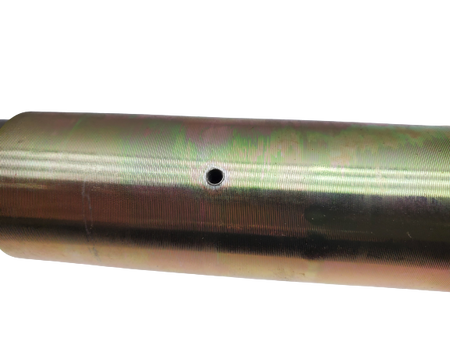

  • Includes hole for speedometer read switch magnet.  Just screw it out of your old axle and screw it into your new axle.

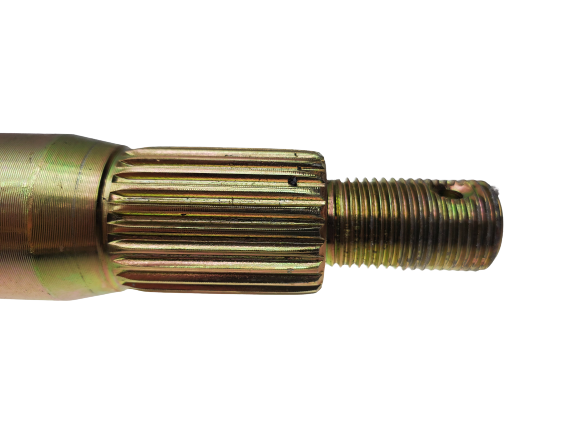

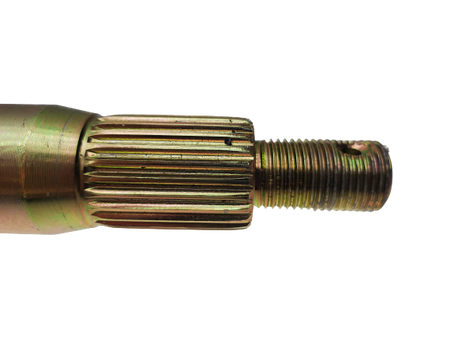

  • M16 1.5 thread pitch.
  • Bearing surfaces 24.5" apart.
  • 41" length
  • Spline to spline distance 36.25"

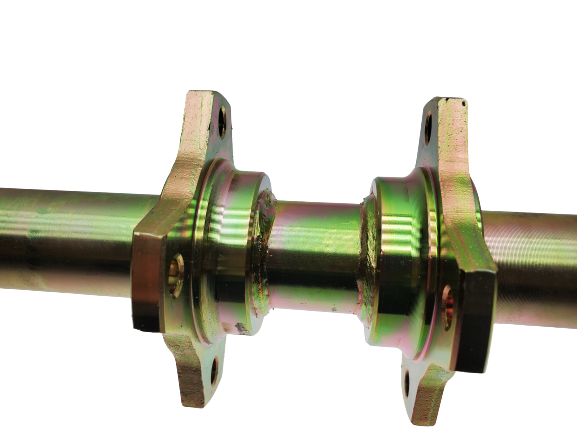

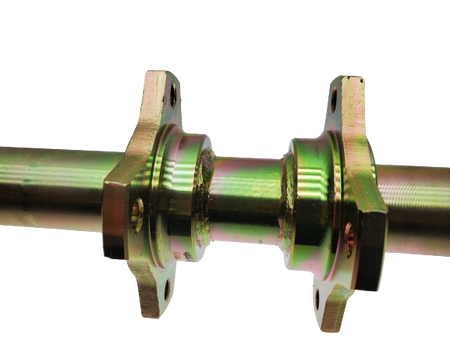

  • Brake hub location 12 5/8" from end of axle
  • Axle hub location: 25 3/8 from end of axle.

Before ordering please check the dimensions above to ensure that this axle fits your TrailMaster.  May not fit all TrailMaster go-karts.  Shipping is non-refundable and you will need to pay the shipping to return the axle if you dont check the dimensions.
