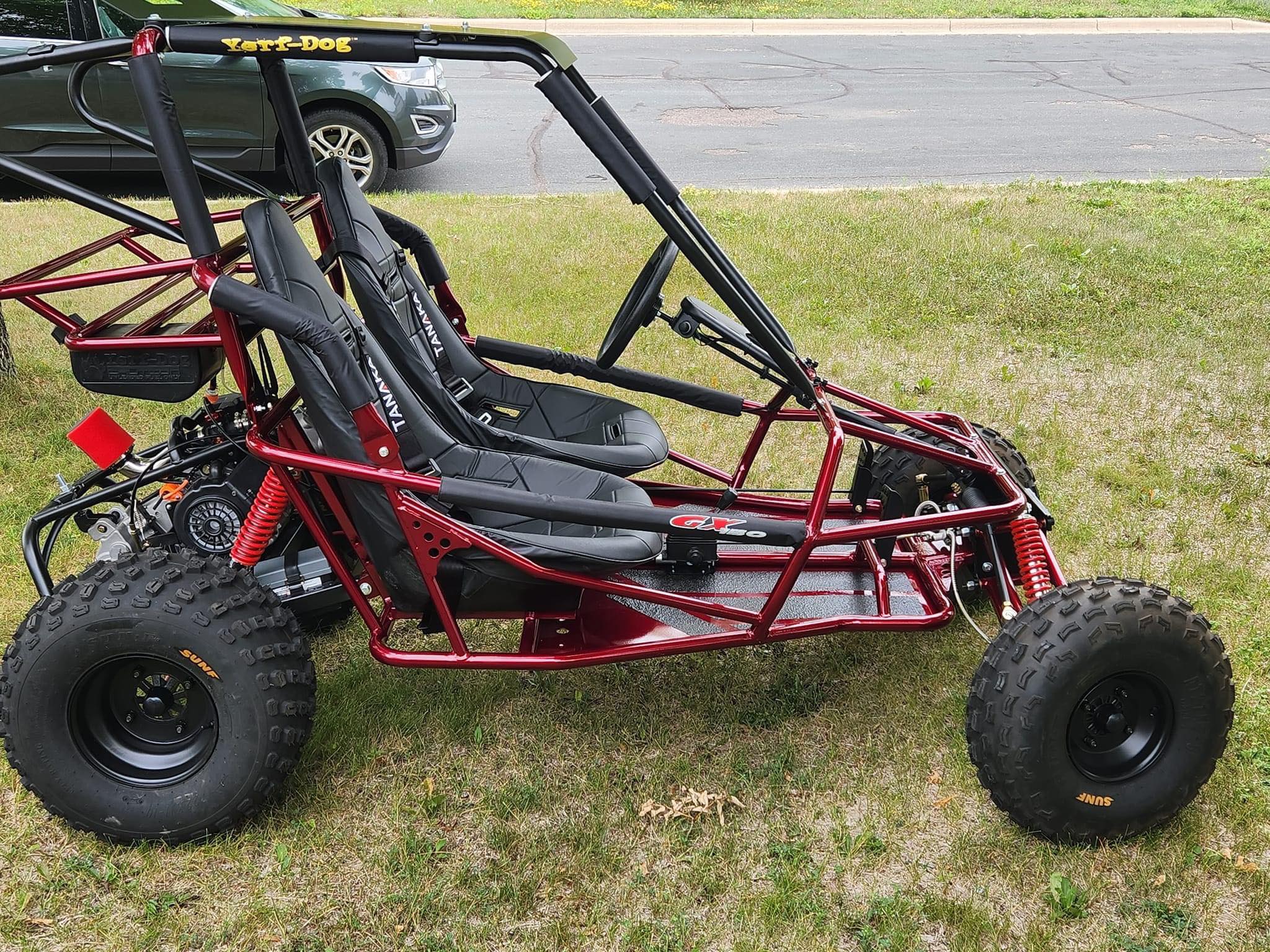

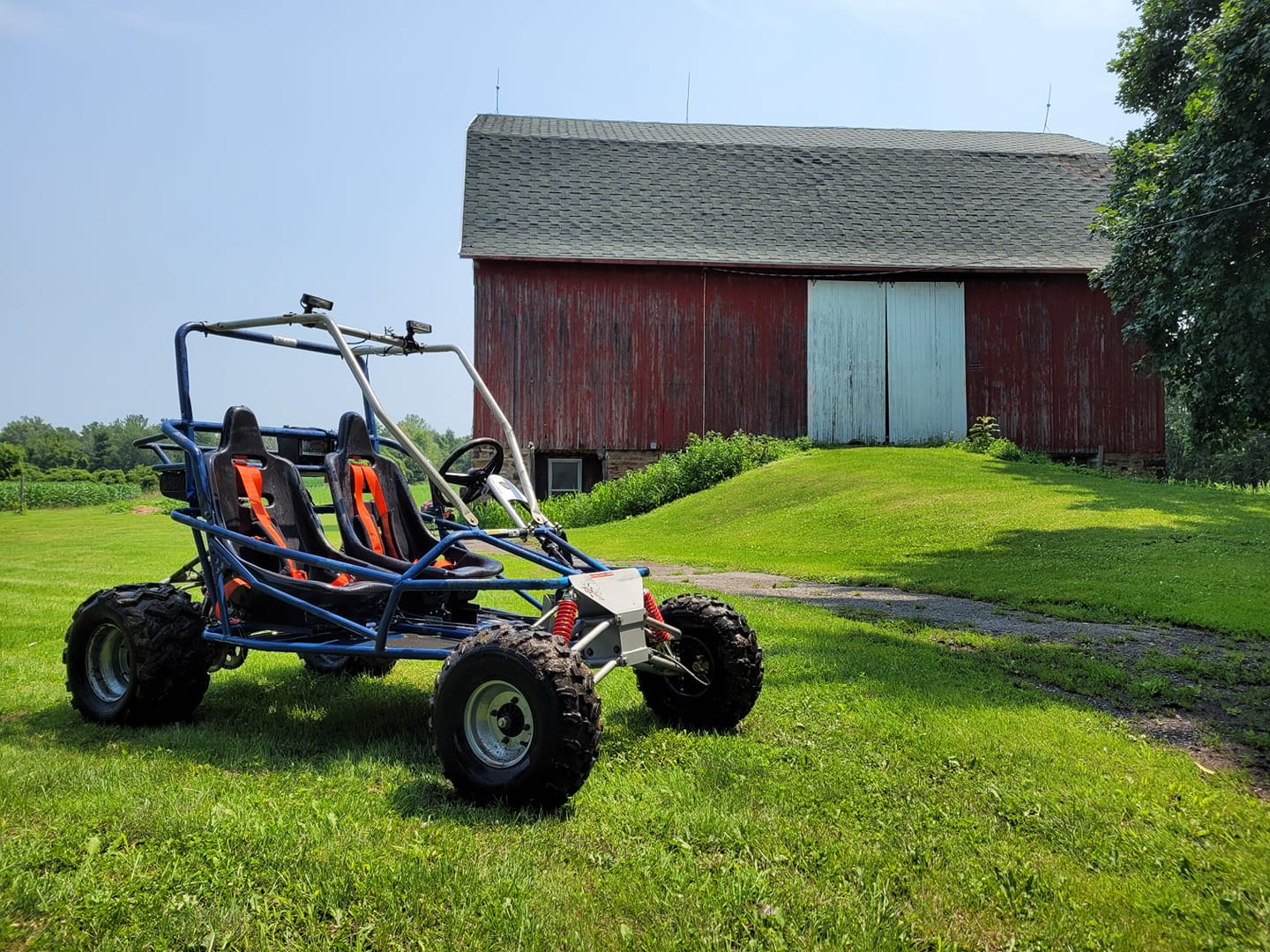

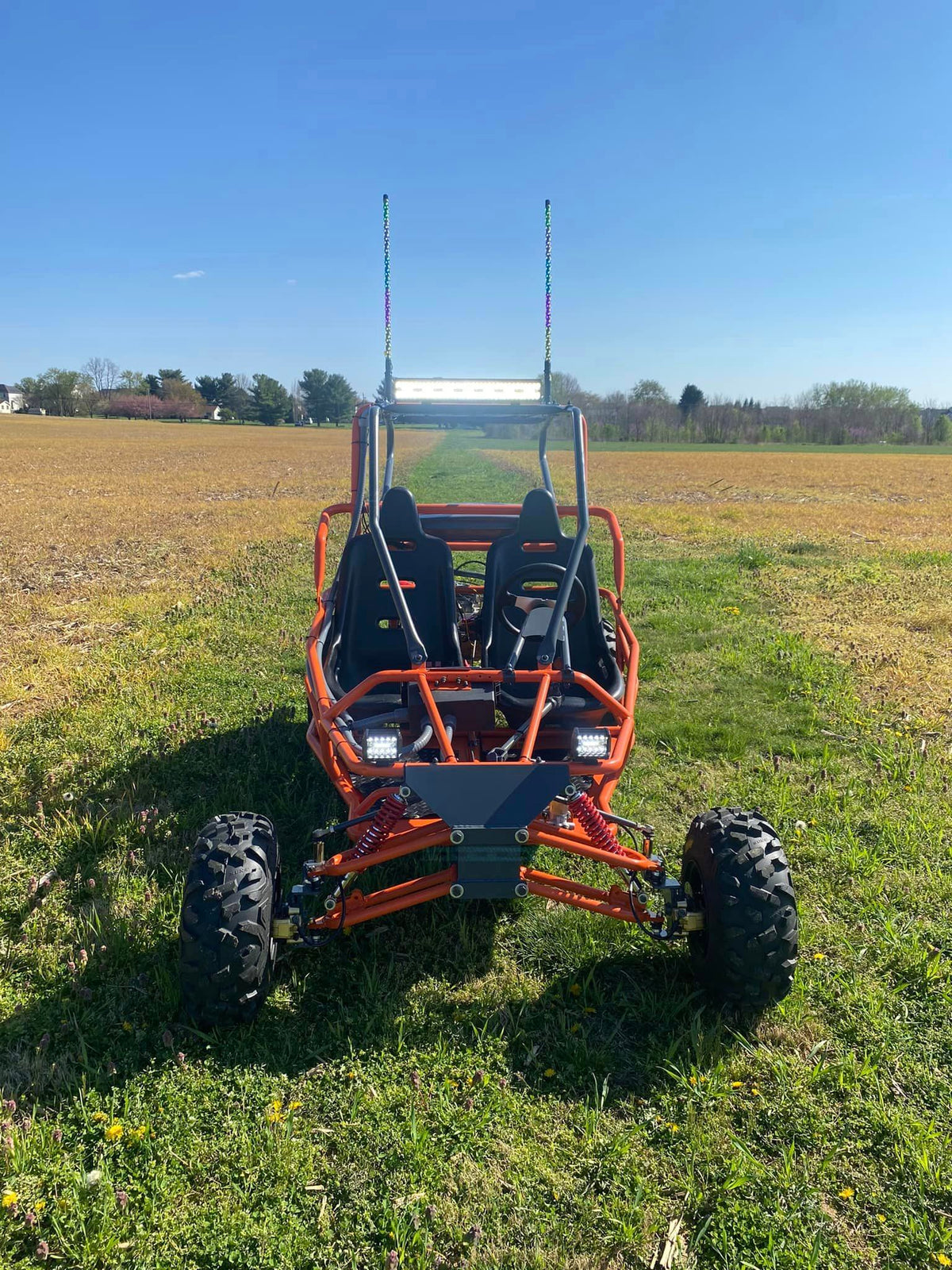

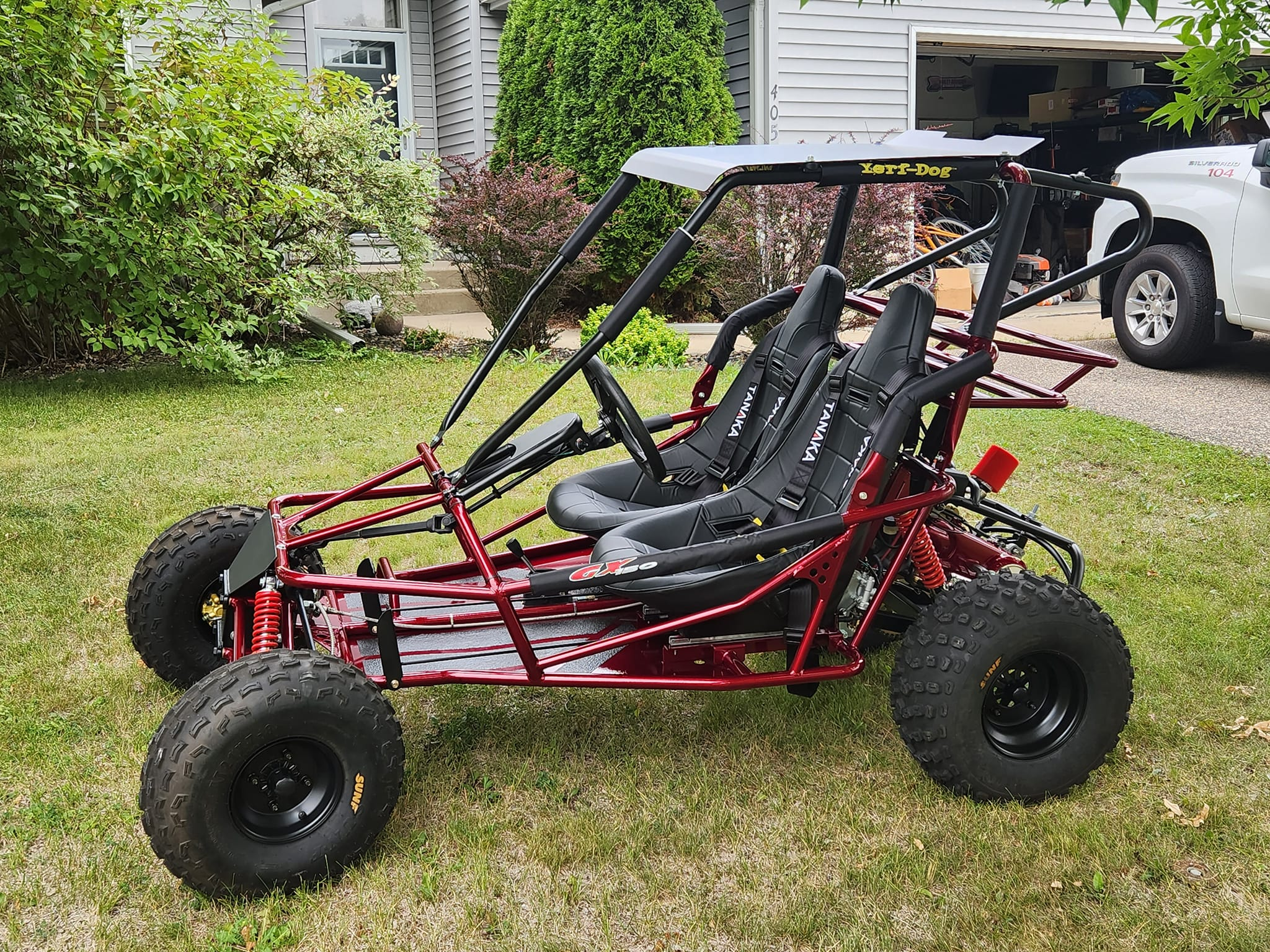

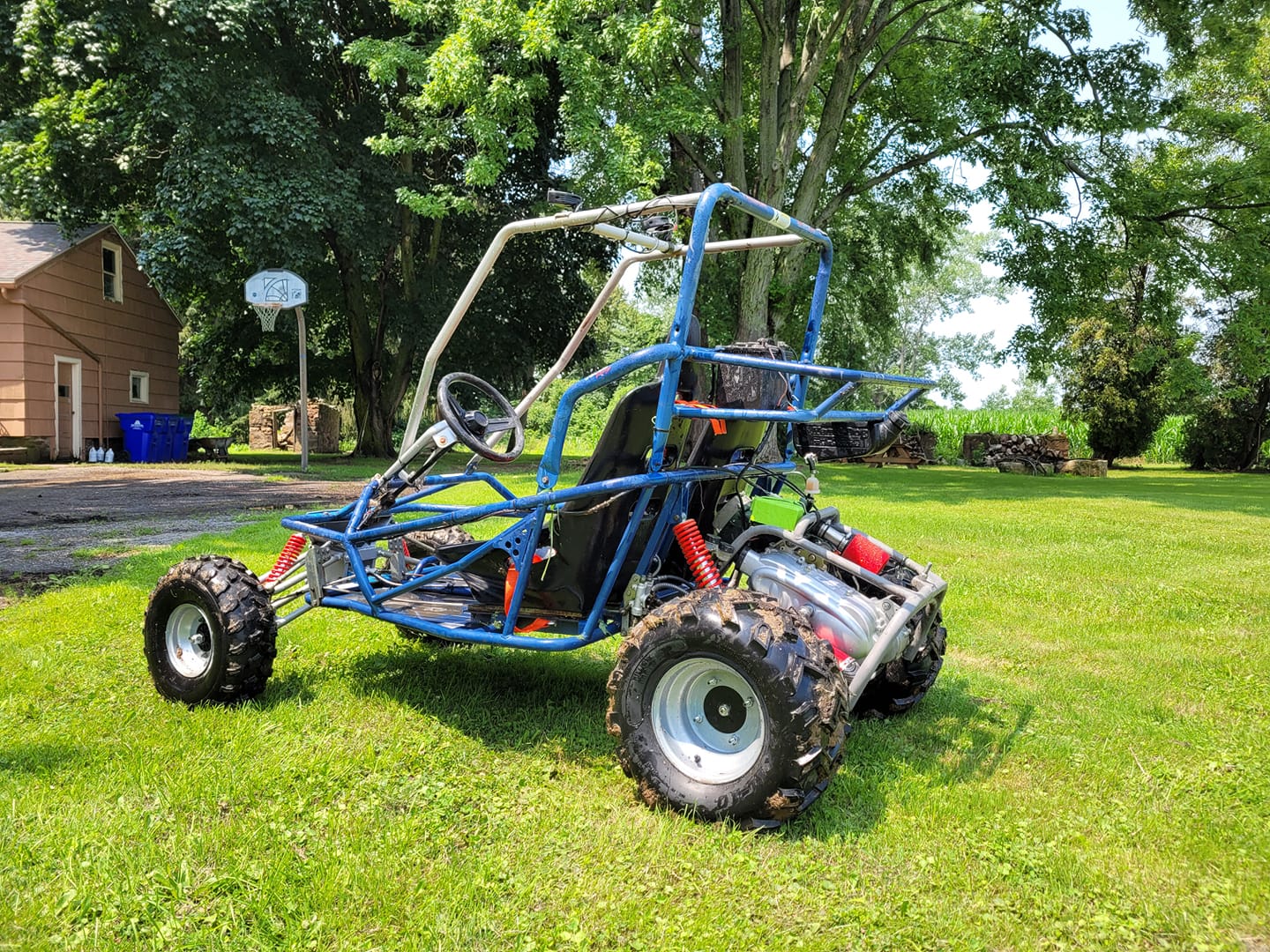

Yerf Dog Spiderbox Refurb Package

American Made Go-Kart

Yerf Dog manufactured 75,000 Spiderbox buggies between 2000 and 2005.  The vast majority of these are still usable.  Even ones that people have left sitting in fields in the sun and rain for the past five or more years.  We hear stories everyday of people purchasing a Yerf Dog for $100, or $200 or $300 and are doing a complete refurb on it.

We have made your refurb easy by offering one package that allows you to purchase everything that you need in one package to refurb your Yerf Dog to be a heavy duty beast.

If you are purchasing the 232cc engine option PLEASE CALL US. 434-532-8147.

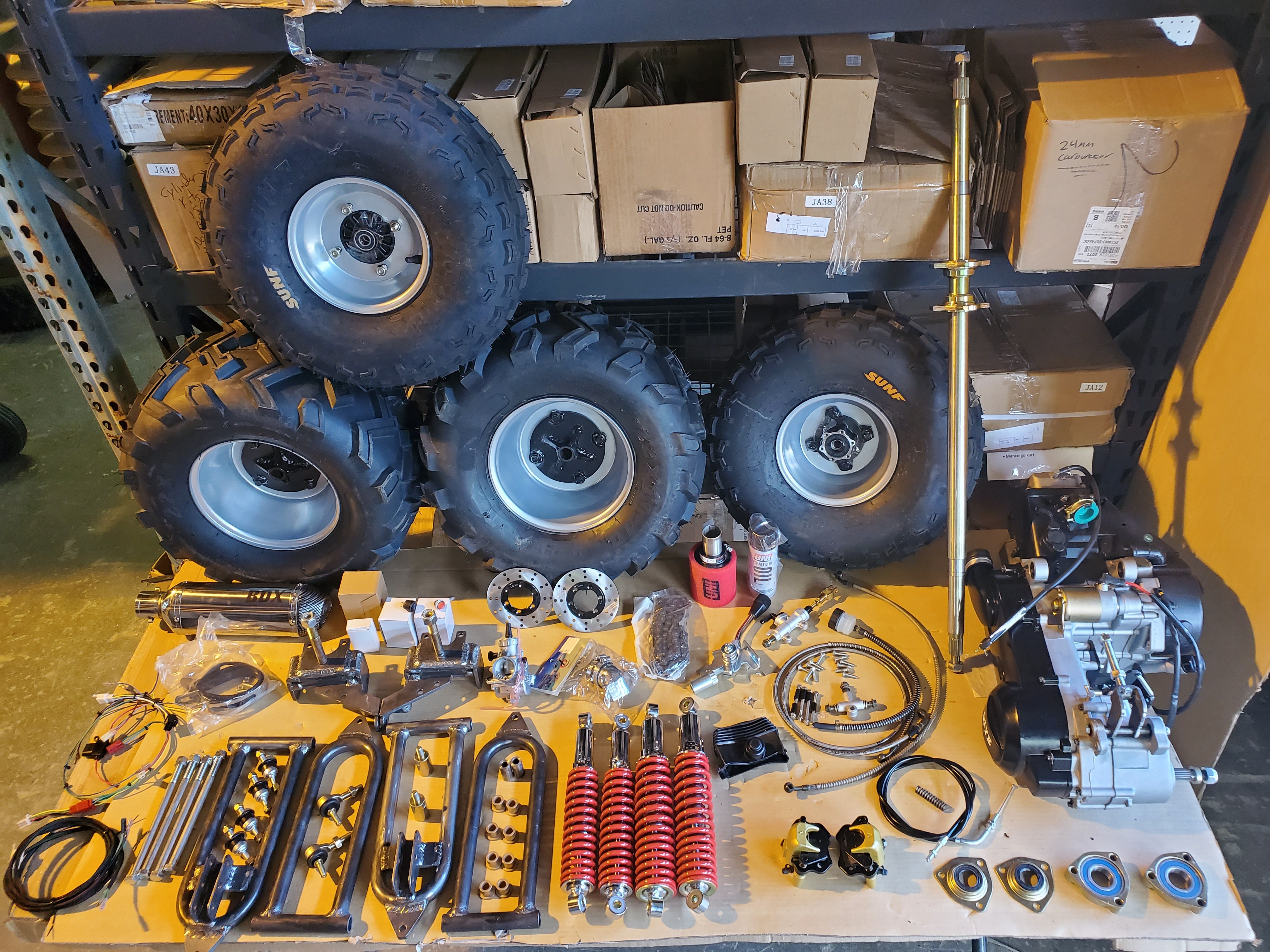

This Refurb Package Includes:

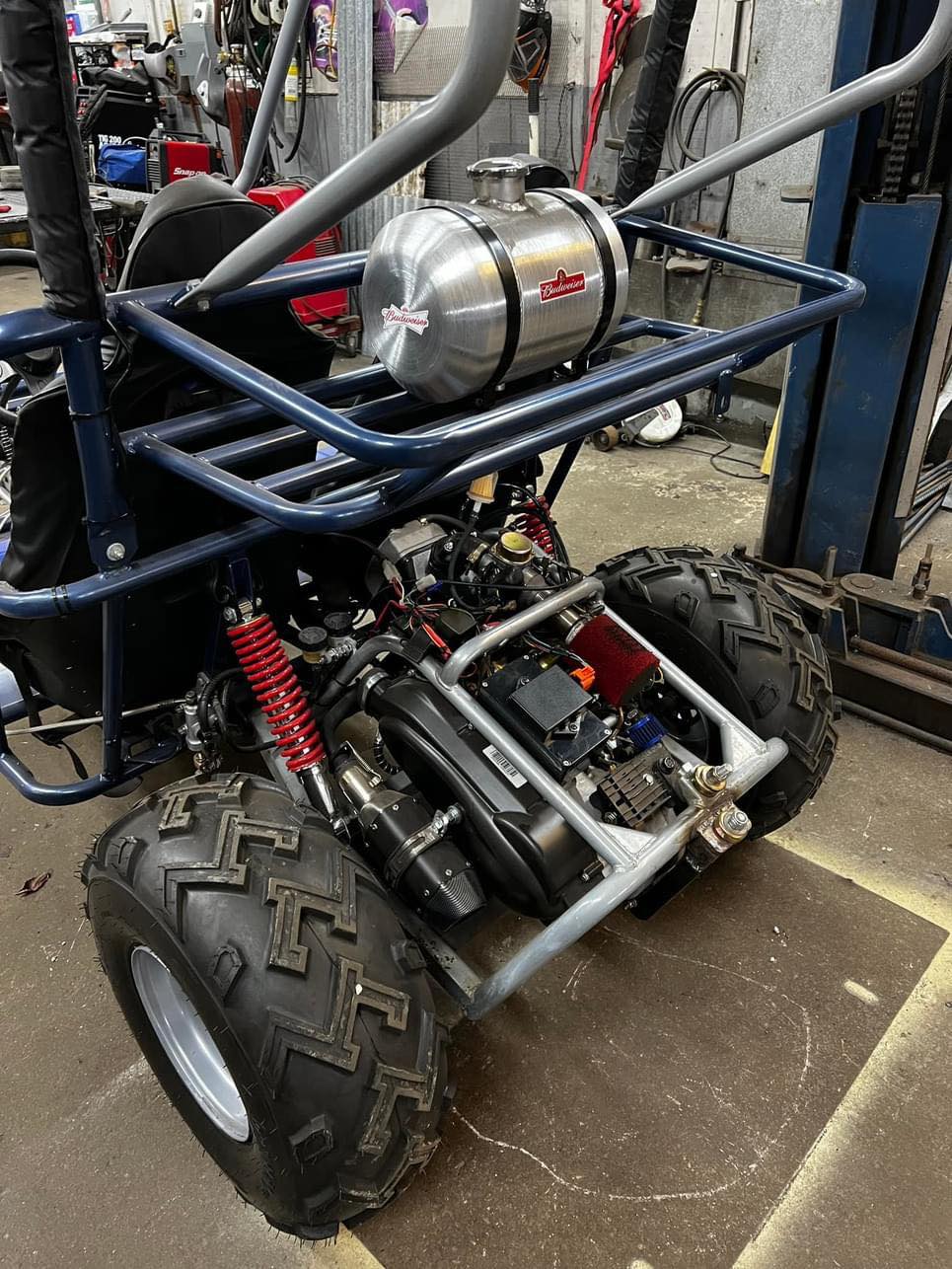

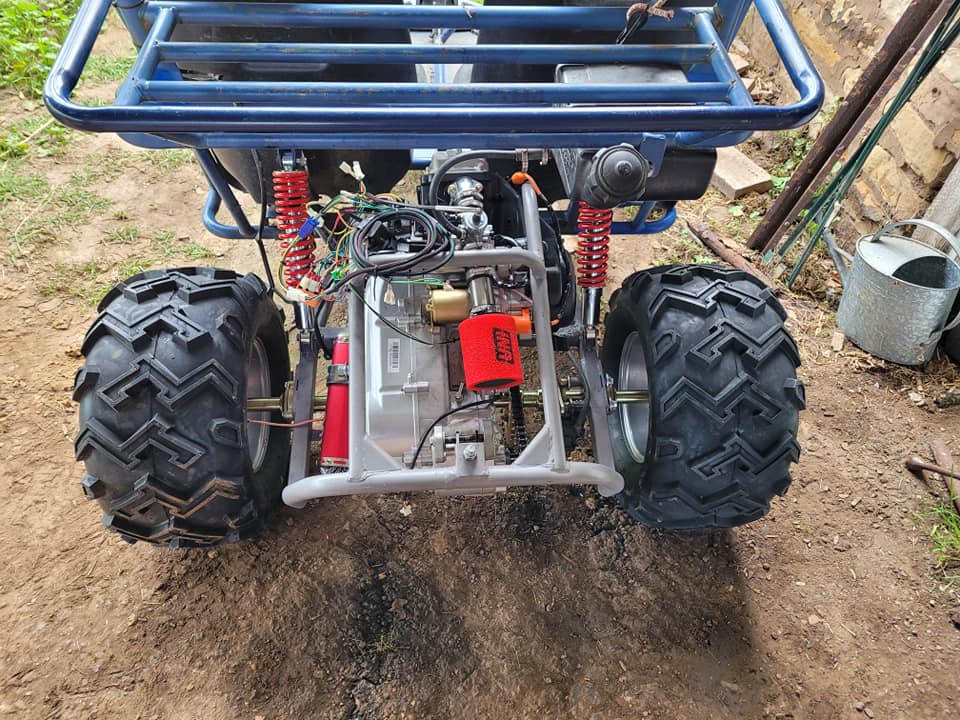

• The BDX 175cc internal reverse replacement racing engine for the Yerf Dog with 62mm big bore kit and A12 cam shaft).


• Performance transmission installed in the engine with 115mm performance variator, 1500rpm spring, high stall clutch, gates powerlink belt and 12g roller weights. (installed in VA) (IF YOU GET THE 232cc ENGINE YOU DO NOT GET THE HIGH PERFORMANCE TRANSMISSION ITEMS. THEY DO NOT FIT IN THE 232cc ENGINE. (for more info contact us)

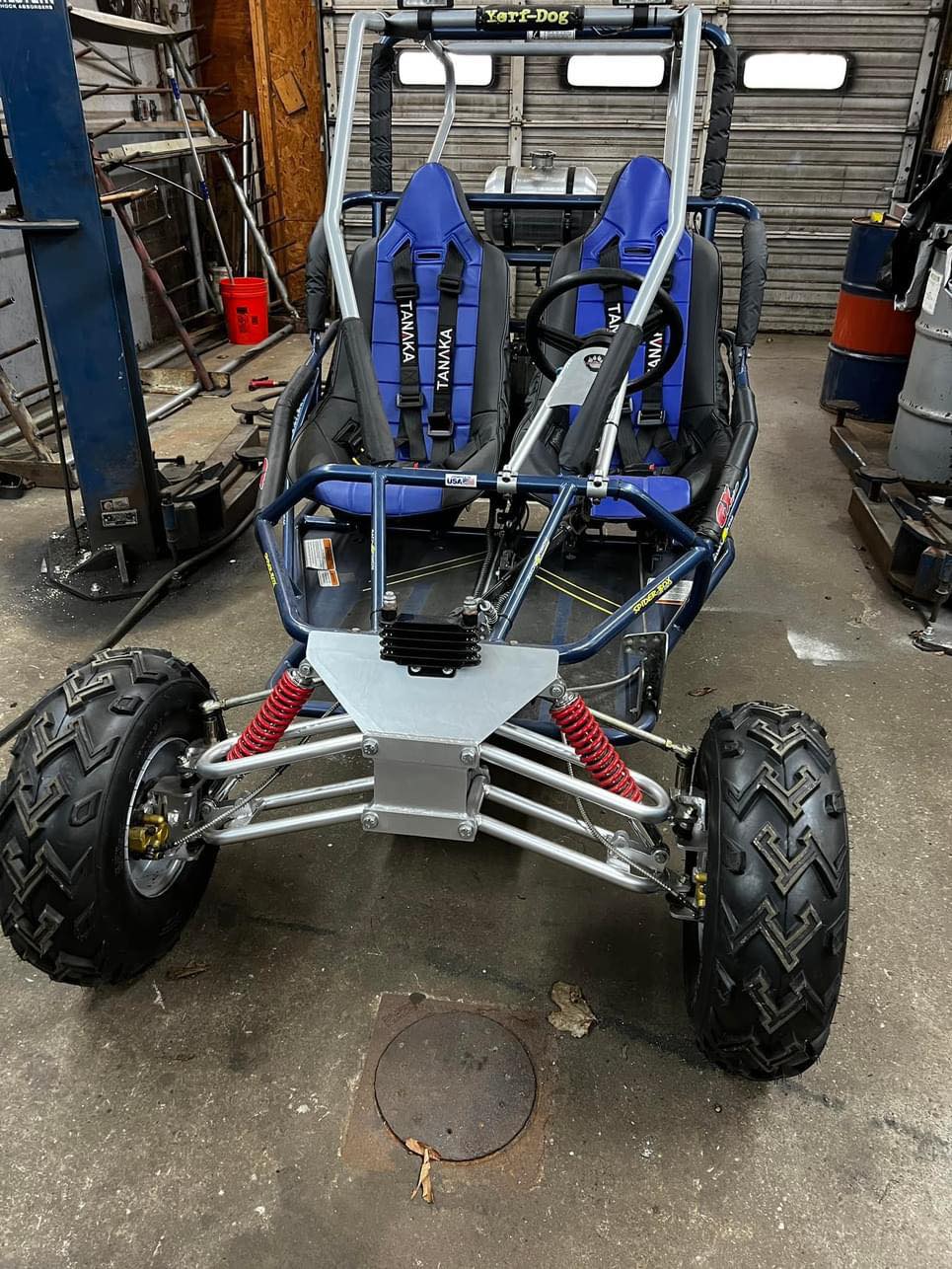

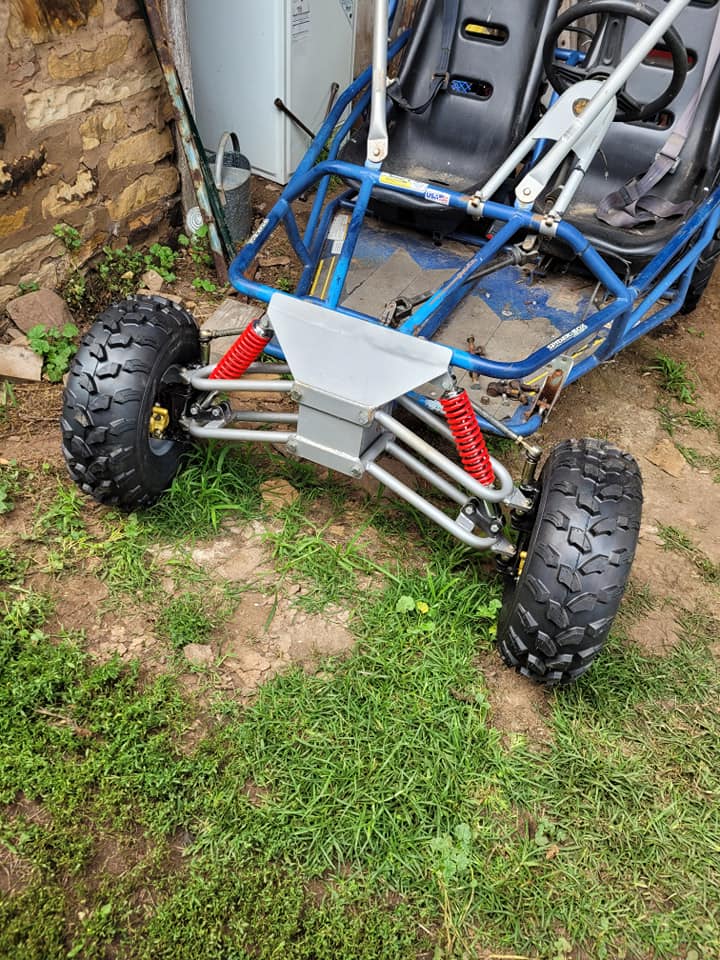

• The BDX front end kit including BDX Heavy Duty A-Arms, BDX Heavy Duty spindles, BDX Heavy Duty ball joints, reinforced bulk head. Made by BDX Va. All new thicker USA metal..

• BDX 3” lift kit including 12.5” dampened shocks.


• The BDX 21 inch Big Boy front tire kit with rims and BDX hubs made in Va


• The BDX Yerf Dog front brake retrofit kit. 1 Extra Master Cylinder and Rear Brake Shoes


• 22x11x8 Rear tires.


• Shifting package for shifting from forward to reverse


• BDX Performance Exhaust (Header Made in VA)


• BDX Engine and Chassis Wiring Harnesses made at BDX with all American made wire.


• Performance CDI and output coil, starter solenoid, rectifier (If you are getting the 232cc option you get the 232cc stock electrical components)


• Mikuni Carb and aluminum intake manifold


• Uni-Filter Air Filter (made in USA)


• BDX 13.6’ Rear Shocks for Yerf Dog Spiderbox


• Machining of your axle to align with your reverse engine sprocket.  You send us your old axle and we machine it to align with your new internal reverse engine.


Optional New BDX Heavy Duty Axle Package:  New BDX Heavy Duty Axle for Yerf Dog Spiderbox instead of machining your old axle.  Includes new 10" rims and BDX hubs and 22x11x10 inch rear tires instead of 22x11x8 inch tires.  With this option you'll also need new rear wheel hubs, new rims. Click here for details
