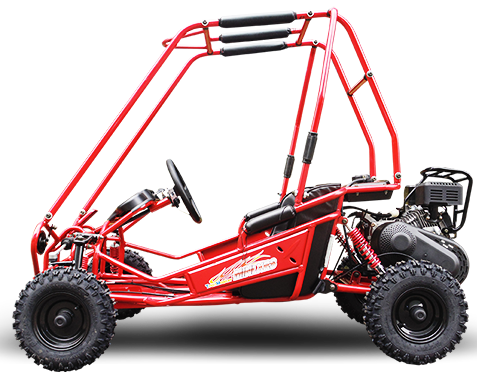

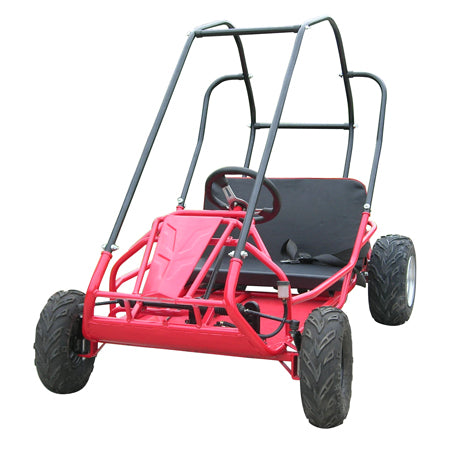

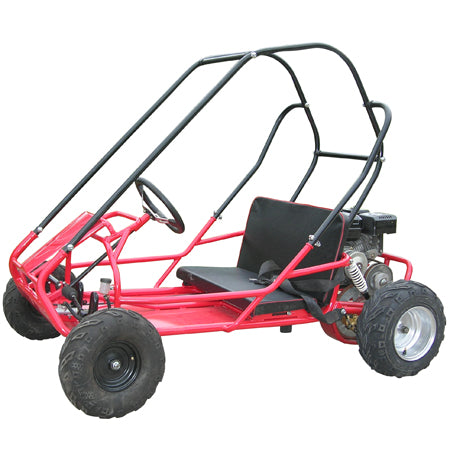

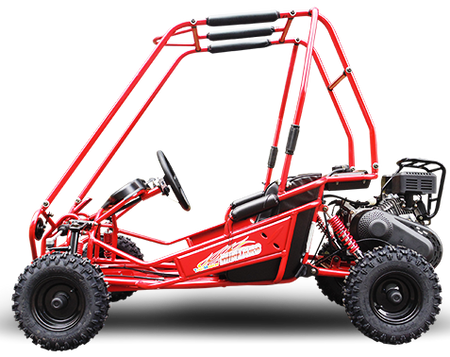

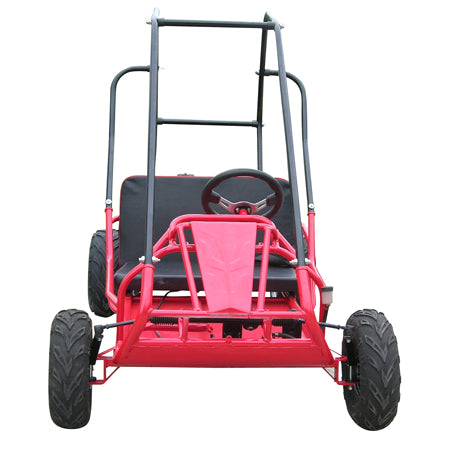

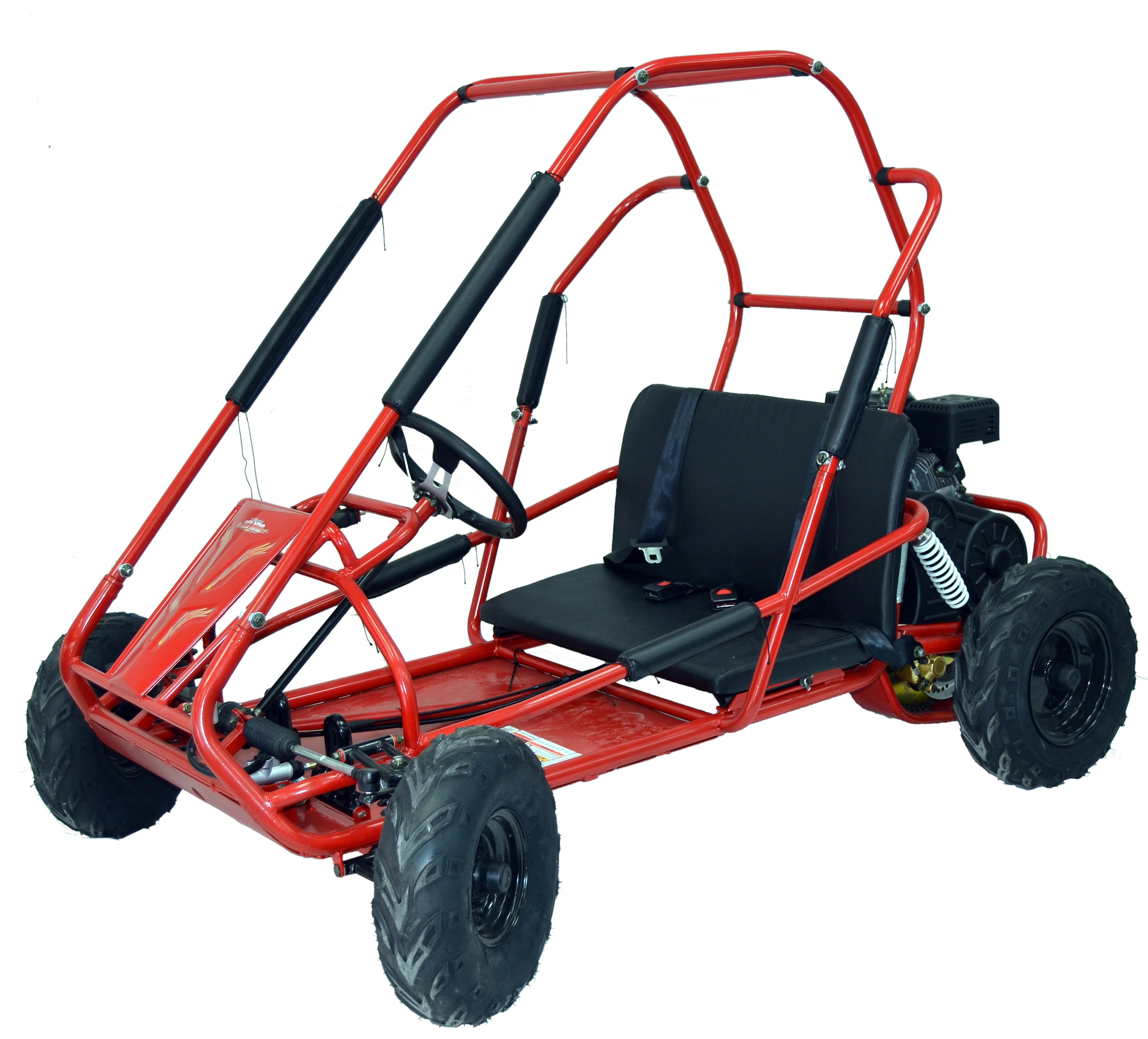

Trailmaster Mid XRS Youth Go-Kart Buggy

In stock

Regular price $1,449.99
Regular price Sale $1,499.99 Sale price $1,449.99

BDX is the only online seller, in the USA, with full parts and phone technical support for this type of vehicle. Read from others who purchased from our competition --  click here Read the full case for buying only from BDX -- click here.

Comes with FREE ONE YEAR WARRANTY: We are the only vehicle seller with a full ONE year warranty.  We do this because we stand for service after the sale!!

Call and speak to a live person -- no automated phone system.

DESCRIPTION

  • Mid size buggy (5'8" and below)
  • 200cc engine
  • Fully automatic CVT transmission
  • 25mph top speed
  • 6in front and 8in rear rims
  • 16in rear tires
  • 2.8in ground clearance
  • 1 gal fuel tank capacity
  • If you get this kart be sure to re-install the torque converter cover after replacing the belt.  Long hair can get caught in the torque converter and literally rip a child's scalp off.  ONLY get this vehicle if you will be diligent about re-installing the torque converter cover.  The other option is to get a go-kart with a modern engine where all of this is encased inside of the engine.  Call if you have questions.

WARRANTY

BENEFITS

This vehicle can come fully assembled or partially assembled -- see options. Partially assembled is the default.

PLEASE READ: CRITICAL SHIPPING INFORMATION

SPECIFICATIONS

  • Engine type: 4-stroke, single cylinder, air cooled
  • Displacement: 200cc
  • Max HP: 6.3hp/3600rpm
  • Max torque: 9.6 lb ft/2500rpm
  • Bore x stroke: 2.6 x 2.1 inches
  • Max speed: 25mph
  • Climbing ability: 12 degrees
  • Ignition: C.D.I
  • Starting system: Manual Pull Start
  • Battery: 12V 9Ah only by Electric Start
  • Carburetor brand: JF (RX)
  • Engine oil: SAE 15W-40
  • Clutch: Automatic CVT
  • Driveline / Driving wheel: Chain / Dual wheel drive
  • Suspension, F / R: Double Oil Damped Shock
  • Brakes, Rear Hydraulic brake, Disc
  • Tires, F / R: 145/70-6 / 16x6-8
  • Fuel capacity: 1 gal
  • Weight, G.W. / N.W.: 386 / 330 lbs
  • Max load: 400 lbs
  • Wheelbase: 48.4 inches
  • OA L x W x H: 67x43.3x51.2 inches
  • Height to seat: 10.2 inches
  • Min ground clearance: 2.8 inches
  • Pedal to seat back distance: 31.5 to 34 inches
