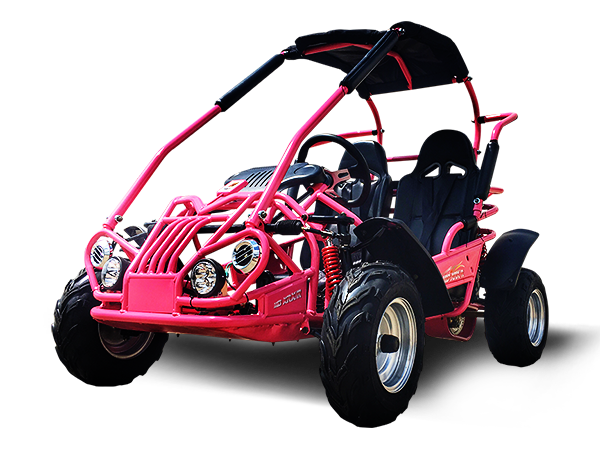

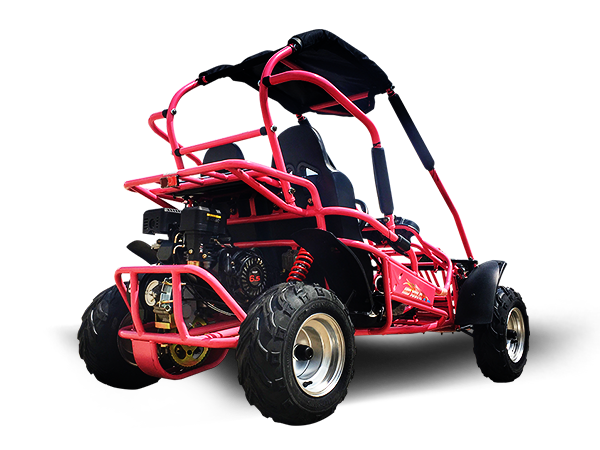

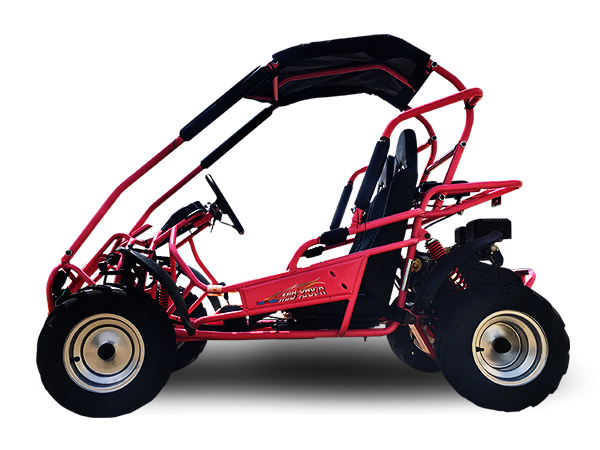

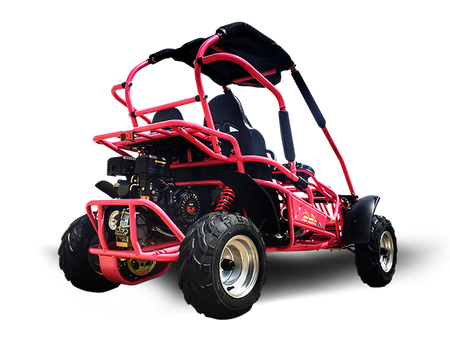

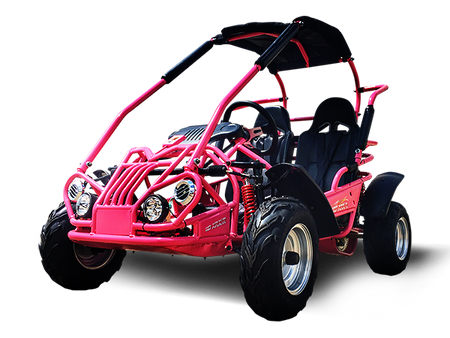

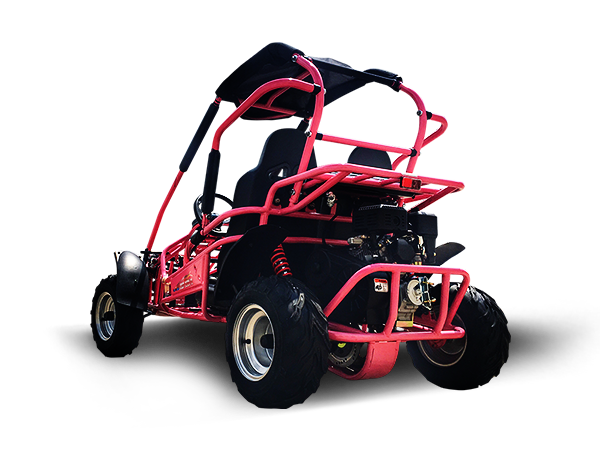

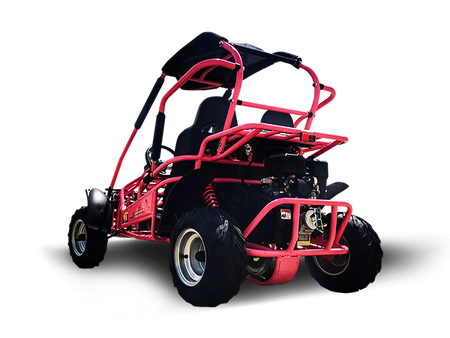

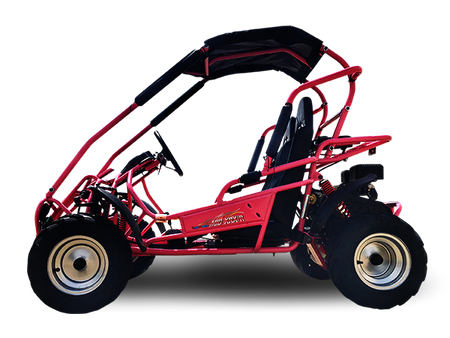

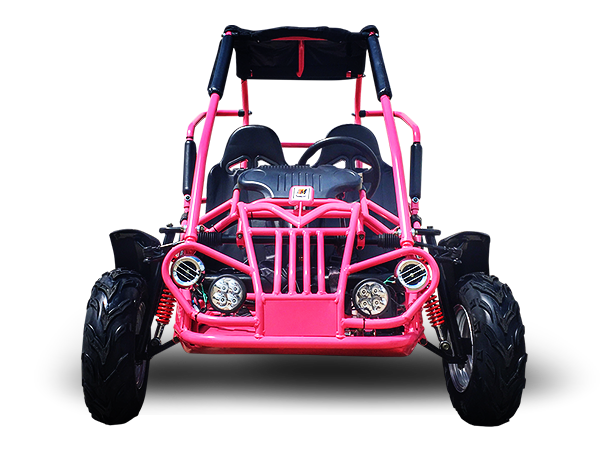

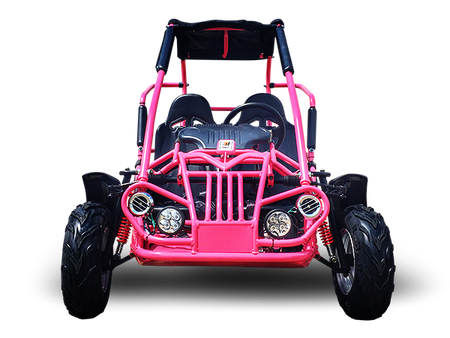

Trailmaster Mid XRX/R+ Youth Go-Kart Buggy

BDX is the only online seller, in the USA, with full parts and phone technical support for this type of vehicle. Read from others who purchased from our competition --  click here.  Read the full case for buying only from BDX -- click here.

Comes with FREE ONE YEAR WARRANTY: We are the only vehicle seller with a full ONE year warranty.  We do this because we stand for service after the sale!!

Call and speak to a live person -- no automated phone system.

DESCRIPTION

• Mid size buggy (5'8" and below)
• 196cc engine
• Fully automatic CVT transmission with reverse
• 31mph top speed
• Chrome 8in front and rear rims
• 16in front and rear tires
• 2.8in ground clearance
• 1 gal fuel tank capacity

• If you get this kart be sure to re-install the torque converter cover after replacing the belt.  Long hair can get caught in the torque converter and literally rip a child's scalp off.  ONLY get this vehicle if you will be diligent about re-installing the torque converter cover.  The other option is to get a go-kart with a modern engine where all of this is encased inside of the engine.  Call if you have questions.

WARRANTY

• Free 1 Year Warranty
• Extended Warranty 2, 3, 4 or 5 Years
• Pickup and Delivery Warranty Insurance

BENEFITS

• FREE One Year Warranty-- all parts included -- click here

• Lifetime Free Phone Tech Support -- click here

• Guaranteed Parts Availability -- click here

• Guaranteed Ride Plan -- click here

• No Shipping Fee Option -- click here

• 25% Parts Discount -- click here

This vehicle can come fully assembled or partially assembled -- see options. Partially assembled is the default.

PLEASE READ: CRITICAL SHIPPING INFORMATION

One Year Free Warranty--included ALL Parts

Lifetime Free Phone Tech Support

Guaranteed Parts Availability

Guaranteed Ride Plan

No Shipping Fee Option

25% Replacement Parts Discount

BDX the Only Seller Who Fully Supports What They Sell

How BDX Compares to the Other Guys

BDX, the ONLY Place You'll Get Straight Talk

BDX Clears the Confusion Intentionally Created by Other Sellers

Machine Shop Customization Available

The Only Seller With Performance Parts for Speed, Power, Robustness

Seven Reasons to Choose BDX

BDX Facebook Page - See How We Operate

BDX Facebook Group - Meet Thousands of BDX Customers

SPECIFICATIONS

• Engine type: 4-stroke, single cylinder, air cooled
• Displacement: 196cc
• Max HP: 6.5hp/3600rpm
• Max torque: 9.6 lb ft/2500rpm
• Bore x stroke: 2.6 x 2.1 inches
• Max speed: 31mph
• Climbing ability: 12 degrees
• Ignition: C.D.I
• Starting system: Electric / Pull backup
• Battery: 12V 9Ah
• Carburetor brand: JF (RX)
• Engine oil: SAE 15W-40
• Wheelbase: 48.4 inches
• OA L x W x H: 67×43.3x51.2 inches
• Height to seat: 10.2 inches
• Min ground clearance: 2.8 inches
• Pedal to seat back distance: 34-39 inches
• Clutch: Automatic CTV with reverse
• Driveline / Driving wheel: Chain / Dual wheel drive
• Suspension, F / R: Double A-arm / Double oil damped shock
• Brakes. F / R: No / Hydraulic brake, Disc
• Tires, F / R: 16×6-8 / 16×7-8
• Fuel capacity : 1 gal
• Weight, G.W. / N.W.: 386 / 330 lbs
• Max load: 400 lbs
